$199.99

No Stock

1/8 Sensored BL Motor 2200Kv
CSE060006300

TECH NOTES

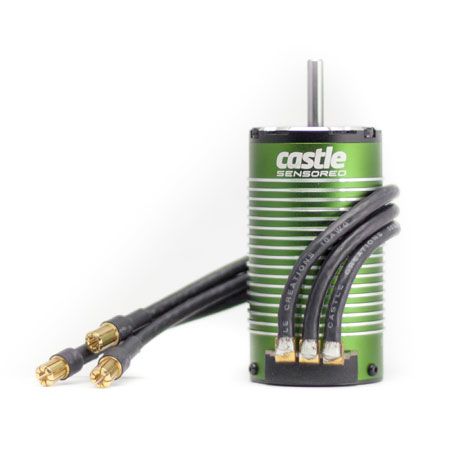

This is the Castle Creations 1515 2200Kv Sensored Brushless Motor.

FEATURES: Ideal for 1/8 scale buggies and truggies and on-road vehicles as well
as 1/10 scale monster trucks weighing up to 15lbs (6804g) and
running up to 6S LiPo packs
High strength neodymium sintered magnets with high strength Kevlar
wrap
High performance 0.2mm steel laminated stacked stator
Four pole configuration for maximum efficiency at high RPM
Vibration dampening wave spring
High-temperature, high purity copper windings
CNC machined 6061-T6 anodized aluminum can and endbells
Hardened stainless steel shaft
Low resistance gold-plated solder tabs
10AWG high strand count insulated wire with 6.5mm femal bullet
connectors
Sensor board with temperature stabilized sensors

INCLUDES: 1515 2200Kv Sensored Brushless Motor
Sensor Wire
Three 6.5mm Female Connectors

REQUIRES: Electronic Speed Control such as the Castle Creations Mamba Monster
X, CSEM4500, or the Mamba Monster 2 CSEM0800

SPECS: Input Voltage Range: 2-6S LiPo
Kv: 2200
Max. RPM: 60,000
Max. Recommended Vehicle Weight: 15lbs (6804g) with battery RTR
Length: 2.96″ (75.18mm)
Diameter: 1.57″ (39.98mm)
Weight with Wires: 15oz (425.2g)
Shaft Diameter: 0.196″ (5mm)
Shaft Length: 0.79″ (20mm)
Mounting Hole Specifications: 3mm screw holes @ 1″ (25.4mm) spacing
Connectors: 6.5mm Male Castle Bullet
