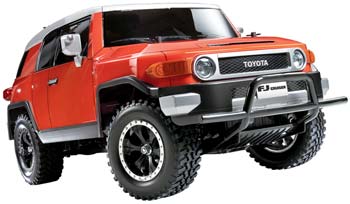

FJ Cruiser SUV Kit, CC-01


This is the 1/10 scale electric powered, radio controlled, 4WD
Toyota FJ Cruiser Off-Road Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 electric motor
Electronic Speed Control: TBLE-02S
Shocks: Oil-filled, black plastic bodies
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Body: Clear molded polycarbonate
Tires: Semi-pneumatic all-terrain, rubber construction 1.2″ (30mm)
wide, 3.5″ (90mm) diameter
Wheels: Six spoke plastic, black in color 1″ (26mm) wide, 1.9″ (48mm)
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya Toyota FJ Cruiser with oil-filled shocks, 540 motor, ESC,
clear body, tires, wheels, LED light kit, shock oil, 16 tooth
pinion gear, spur gear, instructions
REQUIRES: Radio: 2-Channel with 1 Servo
Eight AA batteries for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

Length: 16.8″ (426mm)
Width: 7.7″ (195mm)
Height: 8.5″ (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9″ (252mm)
Length: 17.2″ (437mm)
Width: 7.5″ (192mm)
Height: 4.9″ (125mm)

TAM58588a TAM58588b TAM58588c
